System overview:
Taking a miniaturized model as a platform, station operation simulation training system in rail transit including monitoring and control of HVAC large scale system, mini system, AC water system, tunnel ventilation, platform shield door, escalator, firefighting equipment, lighting equipment, environmental control equipment and electromechanical equipment.
System functions:
It can realize mode control of system equipment, such as ventilation season, AC season, single/double week, fire and civil air defense and other mode control simulation. It is equipped with a fire zoning alarm system and SCADA electric power automation system.
Training objects:
Station management, maintenance and service posts: station agent, duty office head, watch keeper, electromechanical equipment maintenance and safe operation supervisor.
Specification

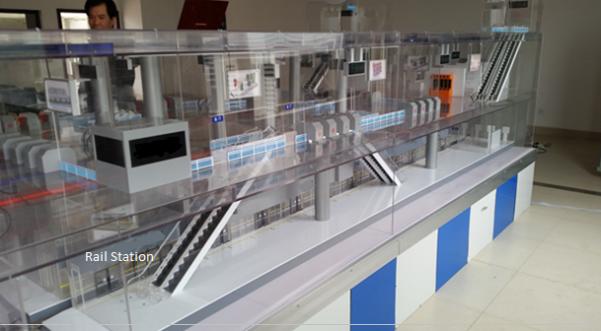

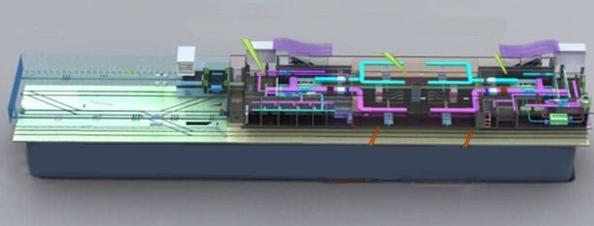

Size: 1:20
Model size 8000:1200:1350
With tunnel, the piston wind well, station model
Function
Include the station air condition small system and large system, air conditioning water system, tunnel ventilation, station door system, elevator, fire equipment, lighting equipment.
